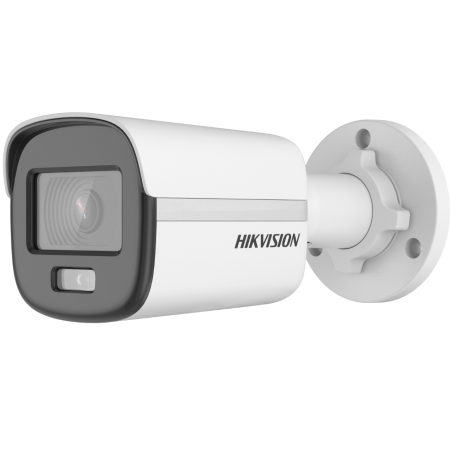

Camera IP ColorVu Mini Bullet 5MP Hikvision DS-2CD1057G0-L

• Camera
• Image Sensor :1/2.7" Progressive Scan CMOS
• Max. Resolution :2560 × 1920
• Min. Illumination :Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time :1/3 s to 1/100,000 s
• Day & Night :24/7 color imaging
• Angle Adjustment :Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

• Lens
• Lens Type :Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV :

2.8 mm, horizontal FOV 95°, vertical FOV 70°, diagonal FOV 125°

4 mm, horizontal FOV 76°, vertical FOV 57°, diagonal FOV 98°

• Lens Mount :M12
• Iris Type :Fixed
• Aperture :F1.0
• Depth Of Field :

2.8 mm: 2 m to ∞

4 mm: 2.7 m to ∞

• DORI
• DORI :

2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

• Illuminator
• Supplement Light Type :White Light
• Supplement Light Range :Up to 30 m
• Smart Supplement Light :Yes

• Video
• Main Stream :

50 Hz:

20 fps (2560 x 1920)

25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 x 1920)

30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream :

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression :

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate :32 Kbps to 16 Mbps
• H.264 Type :Baseline Profile,Main Profile,High Profile
• H.265 Type :Main Profile
• Bit Rate Control :CBR
• Region Of Interest (ROI) :1 fixed region(s) for main stream

• Network
• Protocols :TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour,FTP,802.1x,SMTP
• Simultaneous Live View :Up to 6 channels
• API :Open Network Video Interface (Profile S, Profile G ((only -U model supports)),ISAPI,SDK
• User/Host :

Up to 32 users

3 user levels: administrator, operator, and user

• Security :Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
• Client :iVMS-4200,Hik-Connect
• Web Browser :

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR) :120 dB
• SNR :≥ 52 dB
• Day/Night Switch :Day,Night,Auto,Schedule
• Image Enhancement :BLC,HLC,3D DNR
• Image Settings :Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask :4 programmable polygon privacy masks

• Interface
• Ethernet Interface :1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event
• Basic Event :Motion detection,video tampering alarm,exception
• Linkage :Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

• General
• Power :

12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Material :Aluminum alloy body
• Dimension : Ø76.6 mm × 164.4 mm (Ø3 × 6.5\")"
• Package Dimension :234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
• Weight :Approx. 430 g (0.95 lb.)
• With Package Weight :Approx. 648 g (1.42 lb.)
• Storage Conditions :-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions :-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language :English, Ukranian
• General Function :Heartbeat,anti-flicker,mirror,password protection,password reset via email

• Approval
• EMC :

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

KC: KN32: 2015, KN35: 2015

• Safety :

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment :

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

• Protection :IP67: IEC 60529-2013
