• Neuf

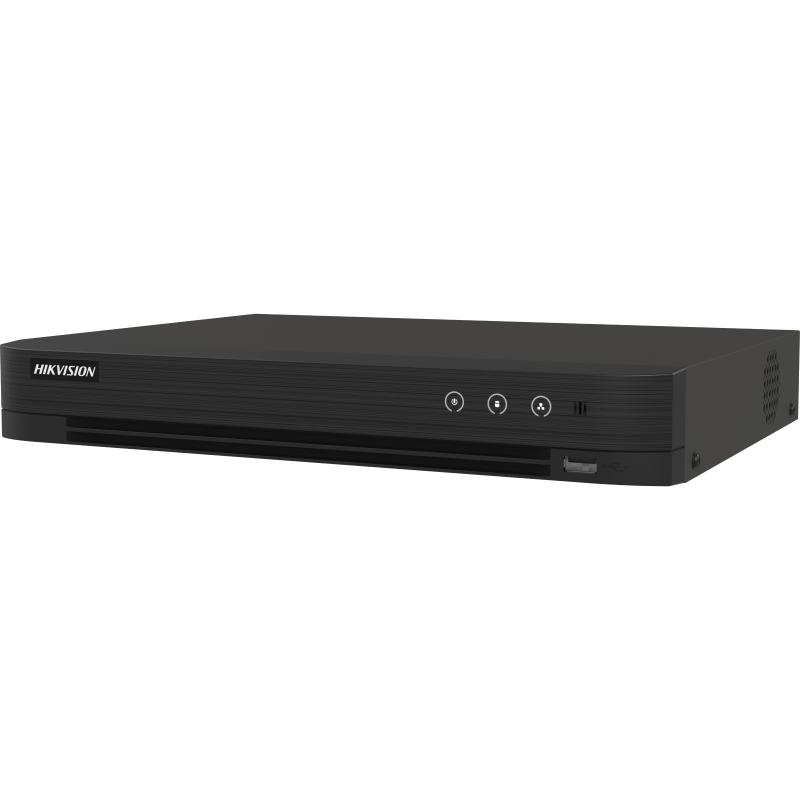

DVR Hikvision 4 channels 8MP Two ways Audio IDS-7204HUHI-M1/T

Référence: iDS-7204HUHI-M1/T

930,00 DH
TTC livraison sous 24H ou 48H Max

DVR Hikvision 4 channels 8MP Two ways Audio iDS-7204HUHI-M1/T

Technologie
Resolution
Marque videosurveillance
Nombre de channels
Quantité

Ajouter au favoris



Paiement sécurisé



Livraison Rapide



Garantie

  • Motion Detection 2.0
  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.

    Quick search by object or event type is supported.

  • Facial Detection
  • Facial Detection and CaptureFace picture detection, face picture search
  • Video and Audio
  • IP Video Input

    2-ch (up to 6-ch)

    Enhanced IP mode on:

    4-ch (up to 8-ch), each up to 4 Mbps

    Up to 8 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    4-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20 fps,2K(2304 x 1296)@20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • HDCVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • CVBS InputPAL/NTSC
  • HDMI Output1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input

    1-ch, RCA (2.0 Vp-p, 1 KΩ)

    4-ch via coaxial cable

  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback4-ch
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/2K/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate

    Main stream:

    8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps/2K@20 fps

    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

    Sub-stream:

    WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  • Video Bitrate32 Kbps to 10 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Total Bandwidth96 Mbps
  • Remote Connection32
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/OutN/A
  • USB Interface2 × USB 2.0
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 15 W (without HDD)
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)
  • ≤ 1.16 kg (without HDD, 2.6 lb.)
iDS-7204HUHI-M1/T
10 Produits

Fiche technique

Resolution
8MP
Marque videosurveillance
HIKVISION
Nombre de channels
4 Channels

Téléchargement

iDS-7204HUHI-M1/T

Téléchargement (977.28k)
