• Neuf

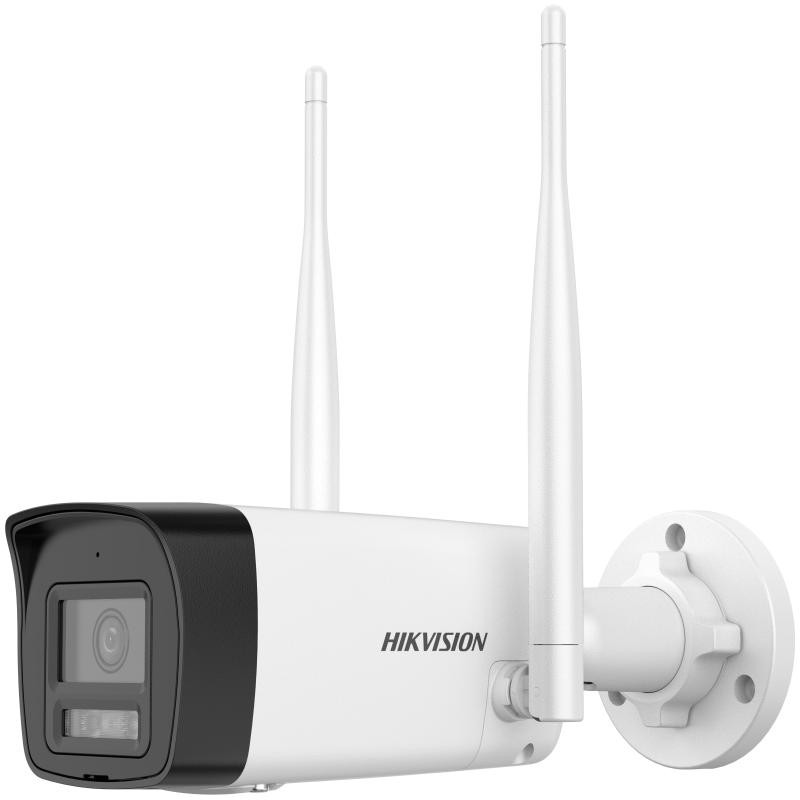

Caméra Bullet WI-FI Sans fil Hikvision 4MP Hybrid light, Two ways audio, Carte Hikvision DS-2CV1043G2-LIDWF

Référence: DS-2CV1043G2-LIDWF

550,00 DH
TTC livraison sous 24H ou 48H Max

Caméra extérieur WI-FI Sans fil Hikvision 4MP Hybrid light, Two ways audio, Carte Hikvision DS-2CV1043G2-LIDWF

Technologie
Resolution
Marque videosurveillance
Distance Infrarouge
Usage
Audio
Support carte SD
Indice de protection
Forme
Objectif
Quantité

Ajouter au favoris



Paiement sécurisé



Livraison Rapide



Garantie

  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°

    4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°

    6 mm, horizontal FOV 46°, vertical FOV 24°, diagonal FOV 54°

  • ApertureF1.6
  • Iris TypeFixed
  • Lens MountM12
  • Depth of Field

    2.8 mm: 1.3 m to ∞

    4 mm: 2 m to ∞

    6 mm: 4.1 m~44 m

  • DORI
  • DORI

    4 mm, D: 68 m, O: 27 m, R: 13 m

    4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m

    6 mm, D: 142 m, O: 56 m, R: 28 m, I: 14 m

  • Illuminator
  • Supplement Light TypeIR, White Light
  • IR Wavelength850 nm
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream

    50 Hz: 20 fps (2560 x 1440, 1920 × 1080, 1280 × 720)

    60 Hz: 20 fps (2560 x 1440, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 20 fps (768 × 432)

    60 Hz: 20 fps (768 × 432)

  • Video Compression

    Main stream: H.265/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio TypeMono sound
  • Audio CompressionG.711(ulaw)/ (AAC-LC)
  • Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • Client

    Wired network: Hik-Connect, iVMS-4200

    Wi-Fi: iVMS-4200

    *Wi-Fi connection with Hik-Connect directly is not possible

  • Web BrowserLocal service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Wi-Fi
  • Wi-Fi ProtocolIEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
  • Frequency Range2.4 GHz to 2.4835 GHz
  • Channel Bandwidth20/40 MHz
  • Modulation

    802.11n: QPSK, BPSK,16QAM, 64QAM,

    802.11b: CCK, QPSK, BPSK,

    802.11g: QPSK, BPSK,16QAM, 64QAM

  • Transfer Rate11n: up to 300 Mbps
  • Image
  • Image Parameters SwitchYes
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in MicrophoneYes
  • Built-in SpeakerYes
  • Reset KeyYes
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),exception
  • LinkageNotify surveillance center, send email, trigger recording, trigger capture, audible warning
  • General
  • Power12 VDC ± 25%, 0.55 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
  • MaterialBase: plastic, front cover: metal, back cover: plastic
  • Dimension260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5" × 2.7")
  • Package Dimension300 mm × 130 mm × 100 mm (10.2" × 5.1" × 4.9")
  • WeightApprox. 310 g (0.68 lb.)
  • With Package WeightApprox. 550 g (1.21 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionHeartbeat, anti-banding, mirror, password protection
  • Approval
  • EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • RFCE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)
  • Safety

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP66: IEC 60529-2013
DS-2CV1043G2-LIDWF
10 Produits

Fiche technique

Technologie
IP
Resolution
4MP
Distance Infrarouge
30M
Usage
Extérieur
Audio
Oui
Support carte SD
Oui
Indice de protection
IP66
Forme
Bullet
Objectif
Fixe

Téléchargement

DS-2CV1043G2-LIDWF

Téléchargement (721.69k)
