• Neuf
  • Camera
  • Max. Resolution3328 (H) × 1504 (V)
  • Shutter Time1/20 s to 1/50,000 s
  • Image Sensor3K CMOS
  • Slow ShutterMax. 16 times
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Lens
  • Lens Type2.8 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
  • Lens MountM12
  • Illuminator
  • Supplement Light RangeIR: Up to 40 m,White Light: Up to 40 m
  • Smart Supplement LightYes
  • Image
  • Frame Rate3K @20 dual
  • Privacy Mask4 programmable privacy masks
  • Wide Dynamic Range (WDR)≥130 dB
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Day/Night ModeAuto
  • White BalanceAuto/Manual
  • Image EnhancementWDR;BLC;HLC;Global
  • Noise Reduction3D DNR
  • Image SettingsBrightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC
  • Interface
  • Video Output1 HD analog output
  • Built-in MicrophoneYes
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • Power

    12 VDC ± 25%, max. 8.9 W

    *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

  • LanguageEnglish
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
  • MaterialMain body: Metal, Enclosure: Plastic
  • CommunicationHIKVISION-C
  • DimensionØ130.11 mm × 109.2 mm (Ø5.12" × 4.3")
  • WeightApprox. 570 g (1.26 lb.)
  • Approval
  • ProtectionIP67

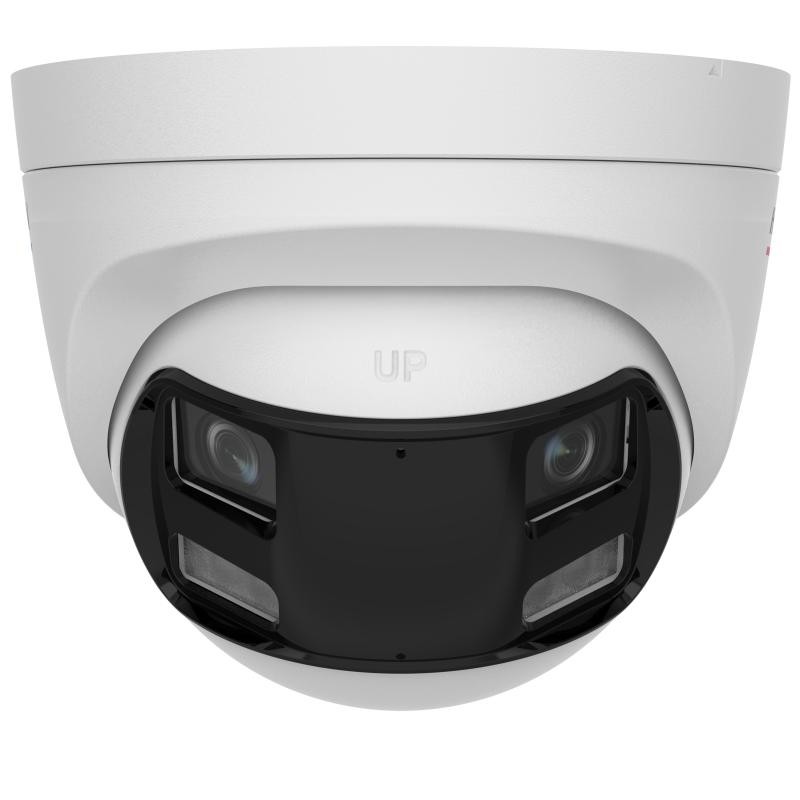

DS-2CE72KF3TP-DLS
100 Produits

Fiche technique

Technologie
Analogique
Resolution
3K
Distance Infrarouge
40M
Usage
Intérieur
Audio
Oui
Support carte SD
Non
Indice de protection
IP67
Forme
Mini Dome
Objectif
Fixe

Téléchargement

DS-2CE72KF3TP-DLS

Téléchargement (1M)
