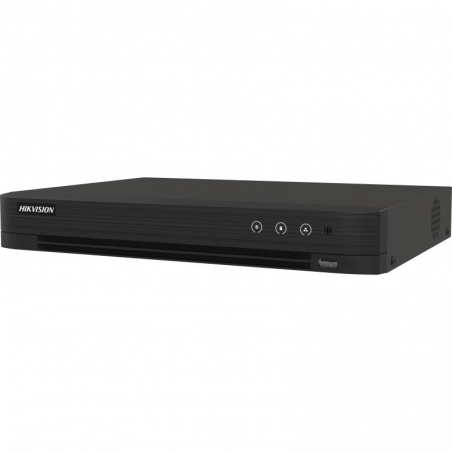

DVR Hikvision 4 channels 8MP iDS-7204HUHI-M1/E

• Motion Detection 2.0
• Human/Vehicle Analysis :

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle Analysis :Up to 4-ch

• Facial Detection :
• Facial Detection and Capture :Face picture detection, face picture search

• Video and Audio
• IP Video Input :

2-ch (up to 6-ch)

Enhanced IP mode on:

4-ch (up to 8-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input :

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input :8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input :5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input :8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS Input :PAL/NTSC
• HDMI Output :1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output :1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode :HDMI/VGA simultaneous output
• Audio Input :

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

• Audio Output :1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio :1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback :4-ch

• Recording
• Video Compression :H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution :8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate :

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrat :32 Kbps to 10 Mbps
• Dual-stream :Support
• Stream Type :Video, Video & Audio
• Audio Compression :G.711u
• Audio Bitrate :64 Kbps

• Network
• Total Bandwidth :96 Mbps
• Remote Connection :32
• Network Protocol :TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface :1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-Fi :Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

• Auxiliary Interface
• SATA :1 SATA interface
• Capacity :Up to 10 TB capacity for each disk
• Alarm In/Out :N/A
• USB Interface :2 × USB 2.0

• General
• Alimentation :12 VDC, 1.5 A
• Consumption :≤ 15 W (without HDD)
• Working Temperature :-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity :10% to 90%
• Dimension (W × D × H) :265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
• Weight :≤ 1.16 kg (without HDD, 2.6 lb.)
