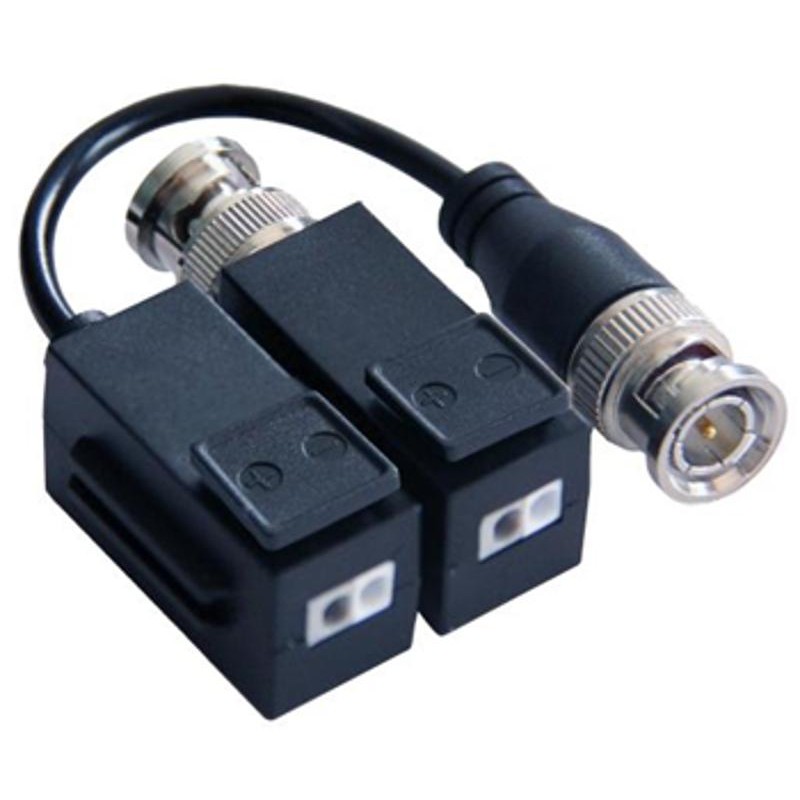

10 unités Vidéo Balun 8MP Hikvision DS-1H18S/E(C)
Référence: DS-1H18S/E(C)
- Donnez votre avis
300,00 DH
TTC
livraison sous 24H ou 48H Max
10 unités Vidéo Balun 8MP Hikvision DS-1H18S/E(C)
Paiement sécurisé
Livraison Rapide
Garantie
Video Balun
- Real-time transmission over UTP cat5e/6
- Compatible with all HD-TVI/CVI/AHD/CVBS analog camera
- Low crosstalk and noise suppressions
- Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
- Wave Filter Design, Anti-Static Design
- 60 dB crosstalk and noise immunity
- Exceptional interference rejection
- ABS engineering plastic housing
- Properties
- Transmission Signal1 channel
- Transmission DistanceMax 350m
- Category TypeUTP CAT 5E/ 6
- Video Transmission Properties and Port
- Coaxial Video ConnectorBNC-M
- Twisted-pair Video ConnectorTool-less push-pin terminal block
- Compatible FormatHD-TVI/TVI/AHD/CVBS
- Resolution720P/960P/1080P/3MP/4MP/5MP/8MP
- Ant-interference>60dB
- Protection
- ESD
Contact discharge electricity level3
air discharge electricity level3
Per: IEC61000-4-2
- Coaxial Cable Connector2KV(common-code) Per:IEC61000-4-5
- UTP Cable Connector
2KV(different-code),
2KV(common-code)
Per:IEC61000-4-5
- Impedance
- BNC Male75 ohms
- UTP Cable100 ohms
- Physical Properties
- ShellABS engineering plastic
- ColorBlack
- Dimensions ( L x W x H )175.3*15.4*17.8mm (BNC connector & cable excluded)
- Weight39 g
- Stability
- MTBF>10000 h
- Environmental
- Operating Temperature-20º ~55º C
- Storage Temperature-40º ~ 150º C
- Humidity0~95% (non-condensing)
DS-1H18S/E(C)
